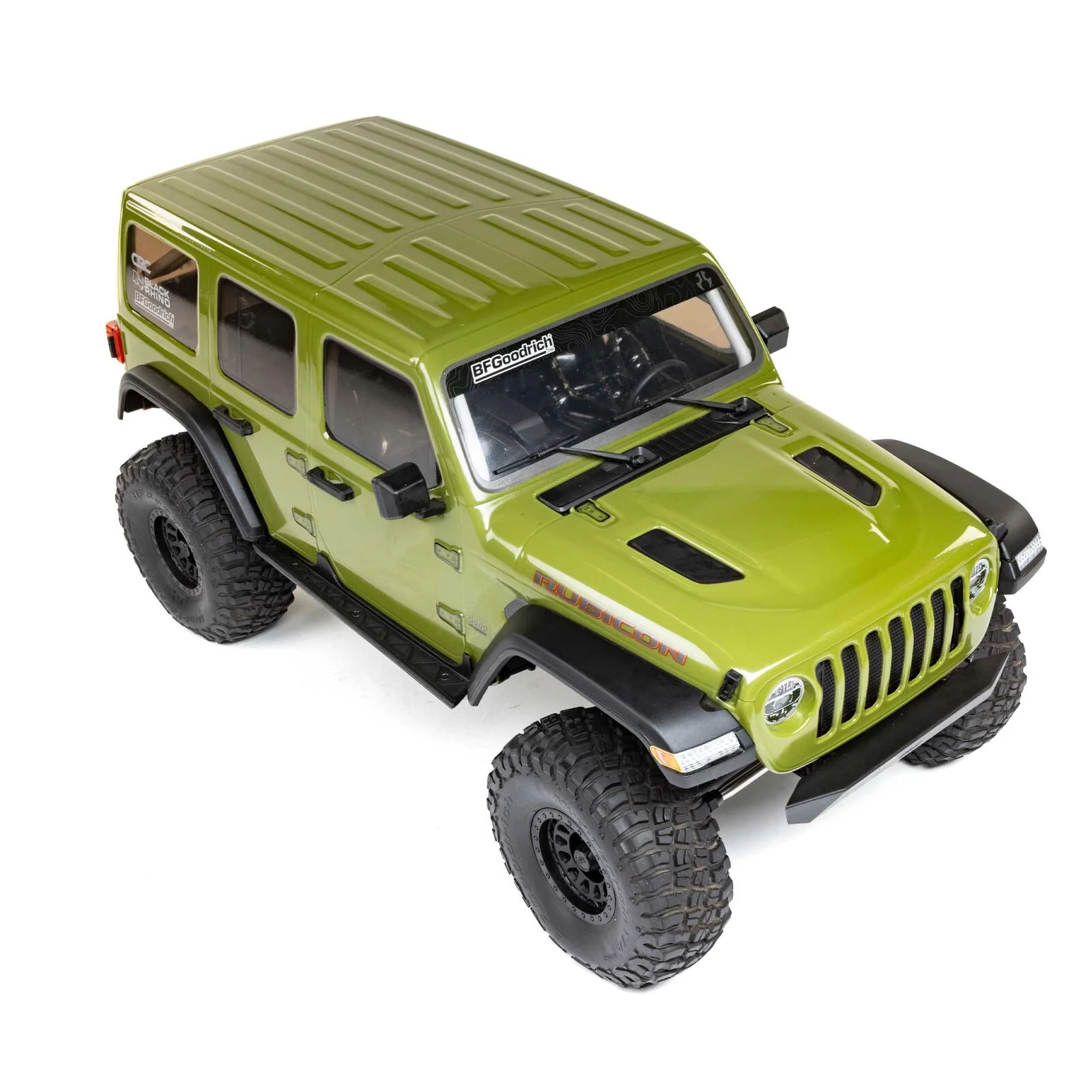

Axial 1/6 SCX6 Jeep JLU Wrangler
Fans of rock crawling, large scale models, and Jeep vehicles alike will be thrilled with the extreme detail and high performance functionality of the SCX6 Jeep JLU Wrangler 4WD RTR. At 1/6 scale it takes Axial off road adventuring to a new level.
In the Box
Axial SCX6 Jeep JLU Wrangler 1/6 Scale 4WD RTR x1
Spektrum DX3 Smart Transmitter with Thumb Steer x1
Spektrum 5 Channel DSMR Sport Receiver x1
Spektrum 1/6 40kg Waterproof Digital Servo x1
Spektrum 15kg Servo for 2 speed Shifting x1
Spektrum Firma Crawler 120A Sensored Brushless Smart ESC x1
Spektrum Firma 1200Kv Sensored Brushless Motor x1
Servo Adapter for Large Scale Servos x1
1/6 SCX6 Jeep JLU Wrangler 4WD Manual x1
Needed to Complete
3S Standard or Shorty LiPo Battery with EC5 or IC5 connector x1
Compatible Battery Charger x1
AA batteries for Transmitter x4
Features
The first ever Axial 1/6 scale chassis design based on the proven SCX10 III
Metal gear transmission comes configured for two speeds with high and low gears
Includes AR90 Standard axles with a Heavy-Duty Spool
Durable three-link front and four-link rear suspension setup provides optimal handling
High-traction 178 mm tall BFGoodrich KM3 tyres mounted on Black Rhino Primm 3-piece beadlock wheels
More Information
At 1/6 scale, the ready-to-run SCX6 Jeep JLU Wrangler 4WD brings a whole new dimension to RC crawling, and Axial engineers have done it right. Whether you are a fan of full-size Jeep vehicles, rock crawling, large-scale models, or all of the above, you will be thrilled by the realistic detail and high-performance functionality found here.
The SCX6 Jeep JLU Wrangler 4WD takes Axial scaling to the next level. Based on the proven SCX10 III, the SCX6 chassis can be considered its big brother. It is engineered for extreme durability and performance with AR90 axles. For optimal handling, the chassis has a three-link Panhard front and four-link rear suspension setup. The transmission provides high and low gearing out of the box, with a Spektrum S614 metal-gear servo fitted for the two-speed linkage.

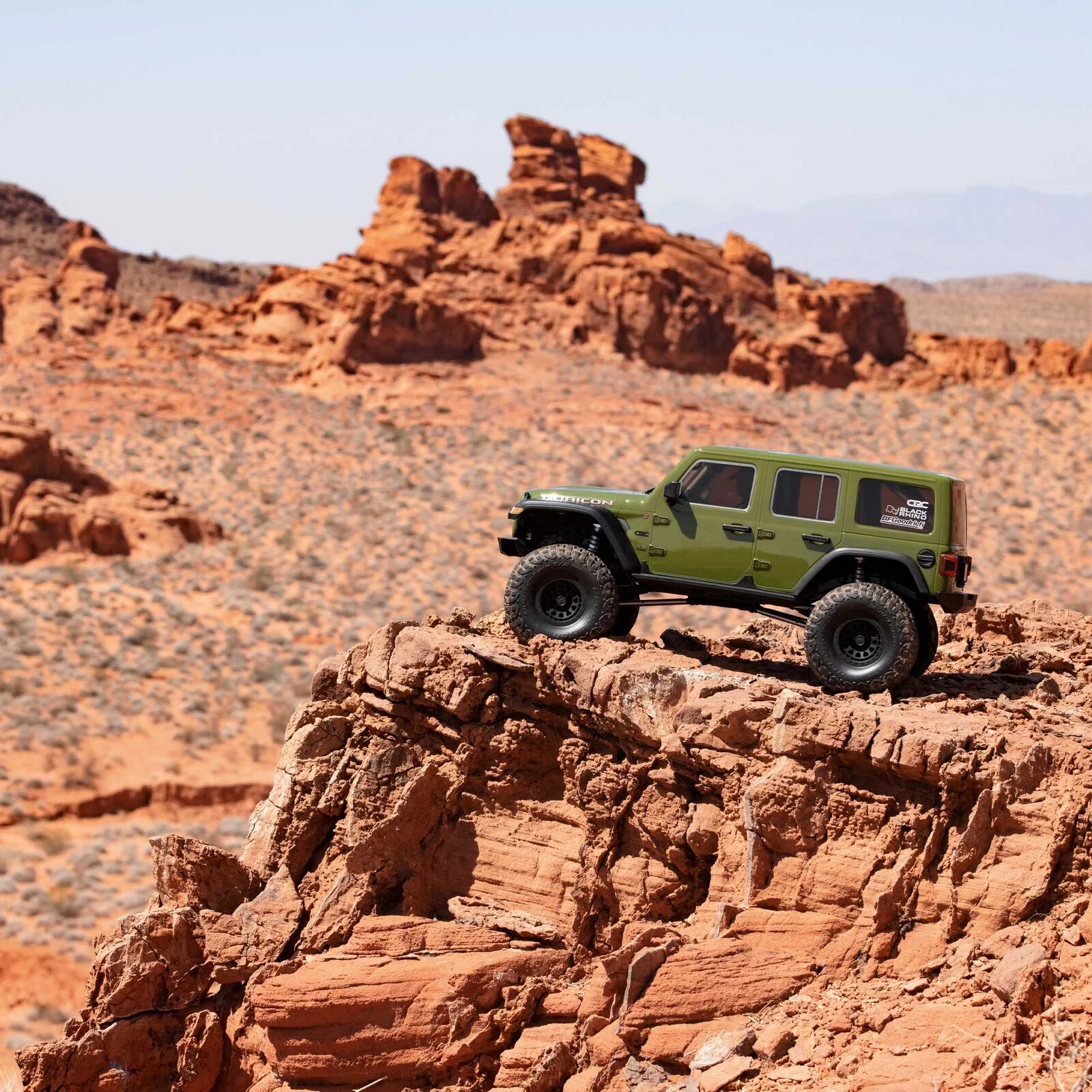

While the 1/6 scale size allows room for impressive detail, the SCX6 Jeep JLU Wrangler 4WD still fits into the boot of your car, and most rock gardens and hiking trails provide plenty of exciting challenges to overcome. As you navigate the trails, you will admire how well the Jeep JLU Wrangler body reproduces its full-size counterpart. Even the most demanding Jeep enthusiasts will appreciate the accuracy of the moulded details throughout. When the sun goes down, LED headlights and tail lights add even more realism.
Massive 178 mm tall BFGoodrich KM3 tyres provide excellent grip and ground clearance for dirt, rocks, and other off-road surfaces. They are mounted on licensed Black Rhino Primm injection-moulded three-piece beadlock wheels so the tyres can be removed and replaced easily without gluing. Forest, desert, lake, mountains... the SCX6 Jeep JLU Wrangler 4WD is ready to go anywhere.
With the included Spektrum DX3 radio, you will enjoy the superior range, response, and interference resistance of DSMR technology. Paired with the fitted Firma Crawler 120A Smart sensored brushless ESC, it is ready to deliver the telemetry benefits of Spektrum Smart technology. Fit a Spektrum Smart LiPo battery and you can monitor vehicle battery capacity using the transmitter’s voltage level indicator. Add the optional BT2000 Bluetooth module to the DX3, download the Spektrum Dashboard app to your smart device, and access additional Smart real-time telemetry without needing onboard sensors or modules.
With its 1/6 scale size, iconic Jeep styling, and proven Axial engineering, the SCX6 Jeep JLU Wrangler 4WD takes RC scaling to an exciting new level. Just add a suitable battery and take on the rocks.
Specifications
Ball Bearings: Complete vehicle
Battery: Sold separately
Body: Polycarbonate
Bushing Material: Metal
Charger: Sold separately
Chassis: Stamped steel
Completion Level: Ready-to-run
Connector Type: IC5, EC5
Differential: Locked
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Final Drive Ratio: 85.02:1 / 25.1:1
Front Track: 378 mm (14.88")
Gear Pitch: 1.0 MOD
Ground Clearance: 108 mm (4.25")
Internal Gear Ratio: 23.73:1 / 7.20:1
LiPo Compatibility: 3S
Motor Size: 5684 (1/6 scale)
Motor Type: Brushless
Pinion: 14T
Power Type: Electric
Product Height: 370 mm (14.55")
Product Length: 852 mm (33.55")
Product Weight: 11.3 kg (25 lb)
Product Width: 378 mm (14.88")
Radio: Included
Rear Track: 378 mm (14.88")
Receiver: Included
Scale: 1/6
Sensored: Yes
Servos: Included
Shock Type: Oil-filled, coil-over spring
Speed Control: Included
Spur Gear: 50T
Steering Type: 2WS
Suspension: Multi-link solid axle
Tyre Compound: Soft
Tyre Tread: BFGoodrich KM3
Vehicle Size: Large
Vehicle Type: Rock crawler
Wheel Width: 52 mm (2.05")
Wheelbase: 501 mm (19.74")
