ARRMA 1/7 INFRACTION 6S
Take high-speed street bashing performance to another level with the 1/7 scale ARRMA INFRACTION 6S BLX 4WD RTR. Capable of 129+ km/h speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum Smart electronics.
In the Box
(1) 1/7 ARRMA INFRACTION Resto Mod Street Bash 6S BLX 4WD RTR
(1) Spektrum Firma 150A Smart ESC (installed)
(1) Spektrum Firma 4074 2050Kv brushless motor (installed)
(1) ARRMA ADS-15M waterproof* servo (installed)
(1) Spektrum SPMS650 waterproof* brake servo (installed)
(1) Spektrum SR6110AT AVC receiver (installed)
(1) Spektrum DX3 DSMR radio
(1) 1/7 INFRACTION 6S BLX V2 All-Road manual
Needed to Complete
(2) 2S or (2) 3S LiPo batteries with EC5 or IC5 connector
(1) Compatible battery charger
(4) AA batteries for transmitter
Features
Spektrum 3-channel DX3 2.4GHz DSMR radio and SR6110AT receiver with AVC (Active Vehicle Control)
Compatible with Spektrum Dashboard app for iOS or Android
ARRMA ADS-15M waterproof* steering servo
Spektrum SPMS650 waterproof* brake servo
Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv brushless motor with Safe-D pinion gears
New electronics module
New mechanical handbrake feature
Fresh street body look with matte gloss effect designs
Tunable wing for customising the downforce
Full-width front splitter balances downforce distribution
Rear diffuser increases downforce and grip for cornering faster and with confidence
Adjustable front and rear body mounts
3 mm plate, 6061-T6 anodised aluminium chassis
Centre brace for maximum durability
Heavy-duty drivetrain with durable steel driveshafts throughout
High-speed centre driveshaft support
Rubber-shielded bearings
All-metal diff outdrives and gearbox internals
Updated internal gears with new tooth profile for increased strength
Lower internal gear ratio to reduce the centre line transmission RPM, reducing centre driveshaft resonance and increasing drivetrain durability
Oil-filled, adjustable, anodised aluminium shocks
Black-anodised aluminium front and rear shock towers
Waterproof* receiver box
Large battery trays
5-spoke wheels
Durable wheel hubs

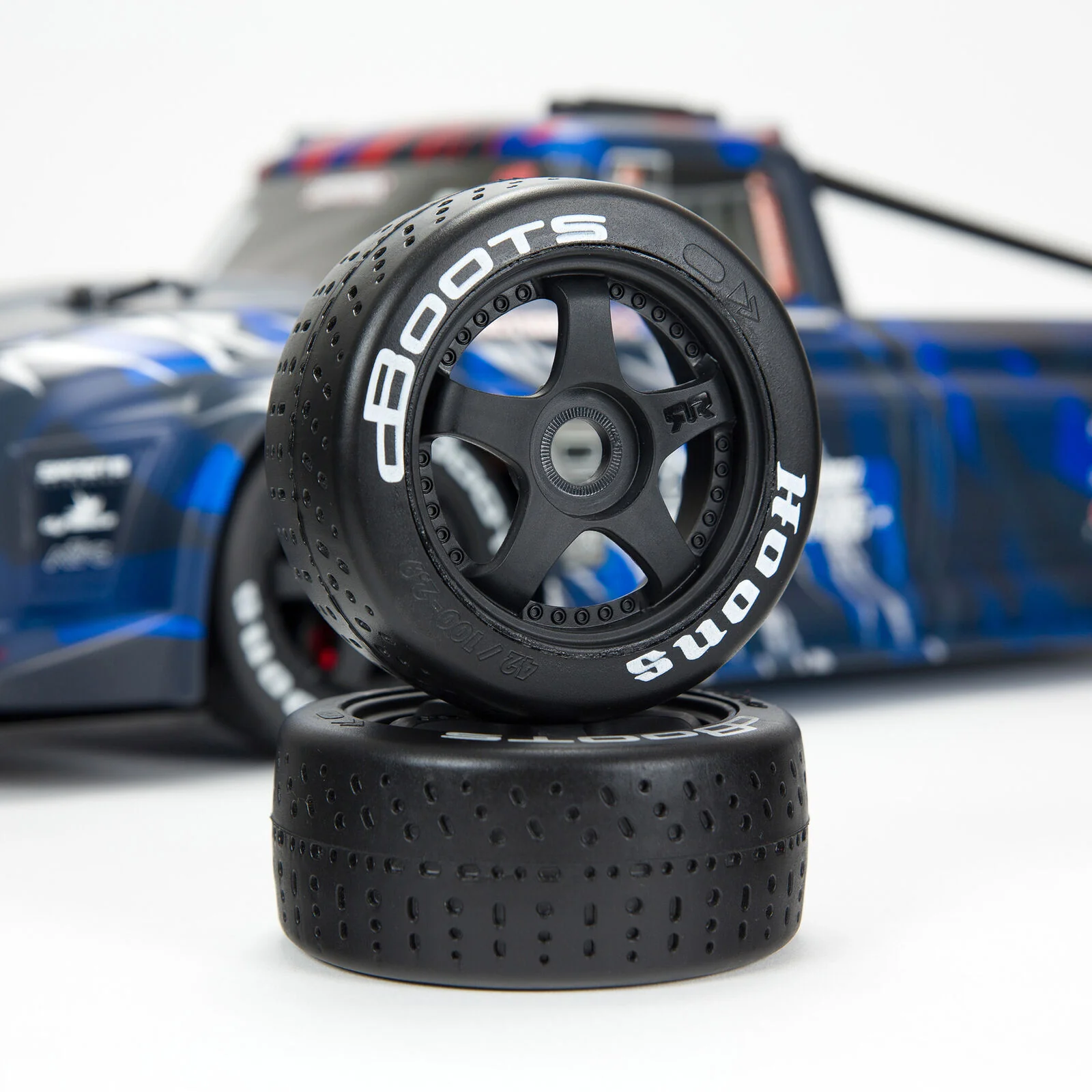

dBoots Hoons all-road tyres
2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manuals
More Information
The ready-to-run INFRACTION 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA brushless platform with stunning style — ideal for intermediate-level drivers who are eager to experience street bashing at 129+ km/h speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum DX3 radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

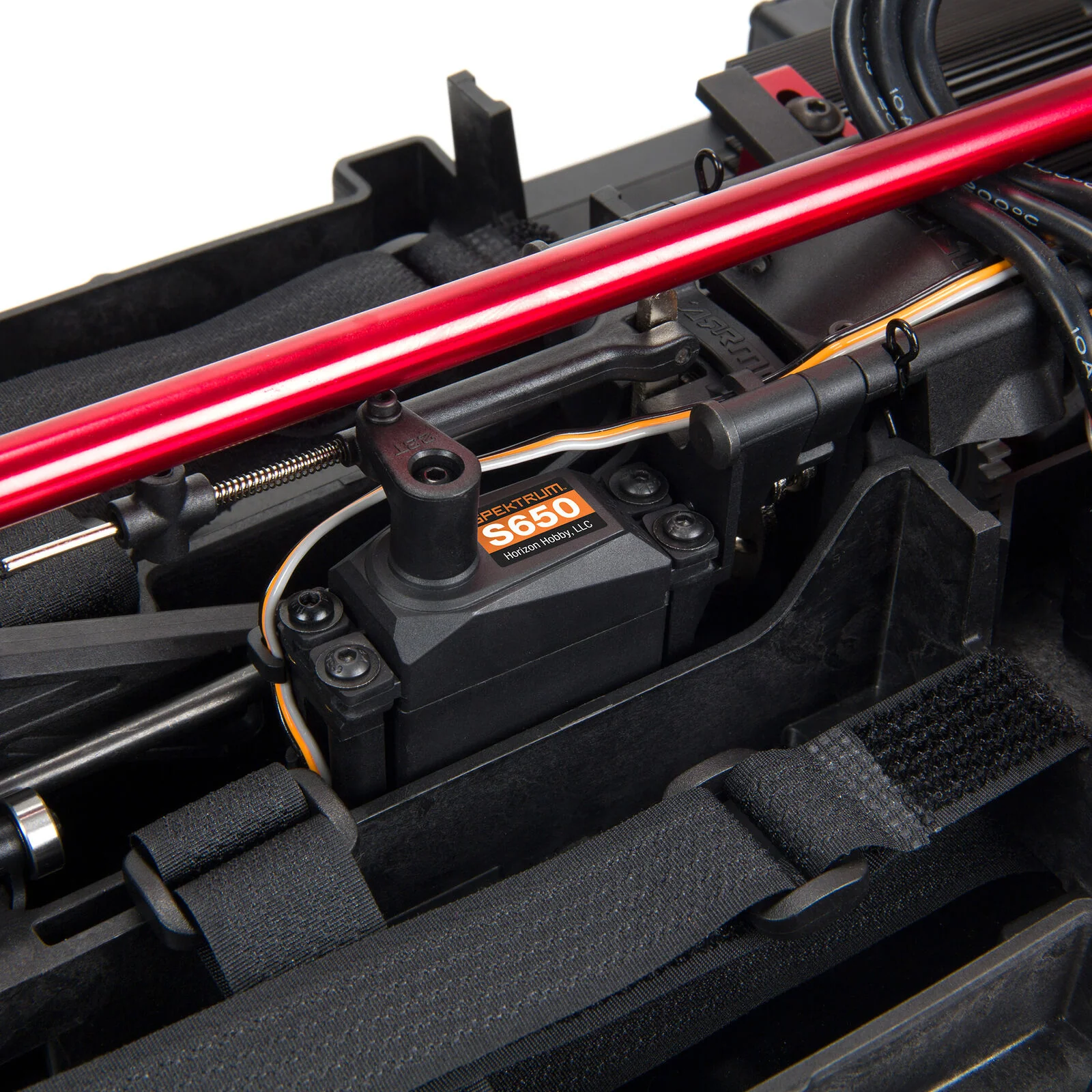

Another feature new to the INFRACTION 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3 transmitter for thrilling drifting, “hooning” and stunt action.
With its 4X4 traction, you can run the INFRACTION 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt and short grass, in the sun, rain and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customise the downforce just the way you want it.
To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots Hoons all-road tyres keep their grip on the surface to pour on speed or stop on a dime.

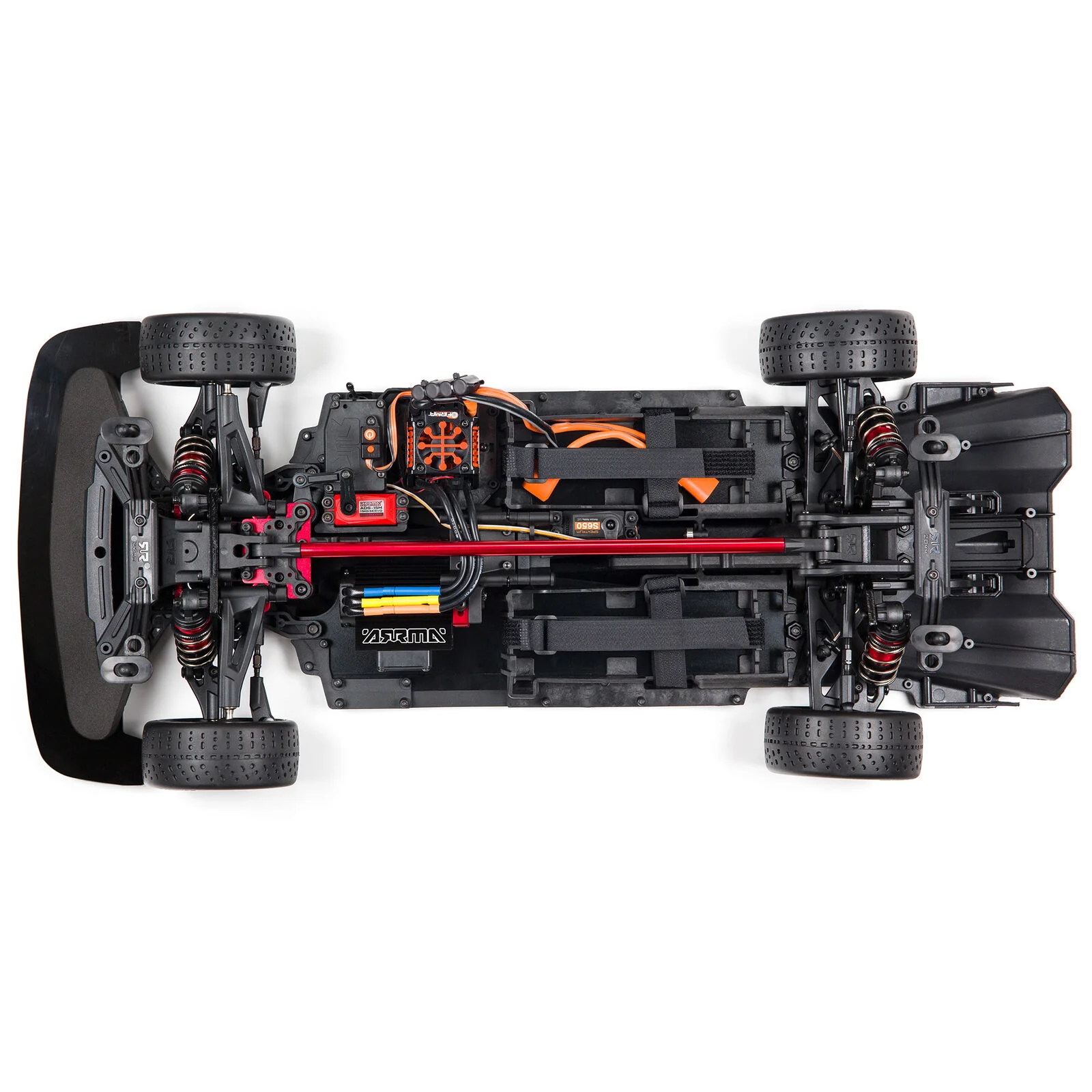

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA builds the most durable bashers. The 6061-T6 anodised aluminium chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the centre line transmission RPM, reducing centre driveshaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a centre brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodised aluminium shocks are mounted on strong, black-anodised aluminium shock towers.
ARRMA has equipped the ready-to-run INFRACTION 6S BLX 4WD with the 3-channel Spektrum DX3 radio and an SR6110AT receiver featuring AVC (Active Vehicle Control) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle’s brushless power system also features Spektrum Firma Smart components, so it’s easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum Dashboard app for iOS or Android, available for free at the App Store or Google Play.
Specifications
Ball Bearings: Full set
Battery: Sold separately
Battery Tray Dimensions: 138.5 × 46.5 × 35 mm
Body: INFRACTION, screen printed, decaled, trimmed
Brakes: Integral with ESC / metal disc with pads (handbrake)
Bushing Material: Metal
Charger: Sold separately
Chassis: 3 mm plate, 6061-T6 aluminium
Completion Level: Ready-to-Run
Connector Type: IC5
Differential: Three oil-filled metal gear
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Final Drive Ratio: 8.58:1
Front Track: 308 mm
Gear Pitch: 1.0 MOD
Ground Clearance: 15 mm
Internal Gear Ratio: 2.8:1
LiPo Compatibility: 4S, 6S
Max Battery Dimensions: 140 × 47 × 38 mm
Motor Size: Firma 4074 2050Kv brushless motor
Motor Type: Brushless
Pinion: 15T
Power System: 6S
Power Type: Electric
Product Height: 200 mm
Product Length: 695 mm
Product Weight: 5000 g
Product Width: 310 mm
Radio: Included
Rear Track: 305 mm
Receiver: Included
Scale: 1/7
Servos: Included
Shock Type: 77 mm (front), 87 mm (rear), aluminium body, oil-filled
Speed Control: Included
Spur Gear: 46T
Suspension: Independent
Technology: AVC and Smart
Tyre Tread: Hoons
Top Speed: 129+ km/h
Vehicle Size: Large
Vehicle Type: All-road
Water-Resistant: Yes
Wheel Hex Size: 17 mm
Wheelbase: 406 mm
